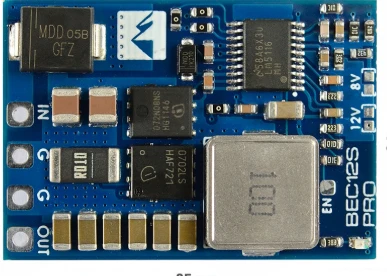

BEC12S-PRO, 9-55V To 5V/8V/12V-5A

Features

Wide 9V to 55V Operating Input Range with TVS protection

3x Output voltage options, 5.2V, 8V or 12V. Default 5.2V.

Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%

Supports continuous output current of up to 5A, peak current of 9A.

Output ripple 30mV (VIN=50V, Output 5.2V @ 5A), 60mV (VIN=50V, Output 12V @ 5A)

Standby current: 5~10mA

No reverse-input voltage protection

Thermal Shutdown

Output Short-circuit tolerant (2 seconds)

Overcurrent protection & self-recovery

Dropout voltage: 2V (Input>=14V is required for stable 12V output)

Pins distance: 3.81mm

Size & Weight: 35 x 24 x 5.5mm, 5g

Packing: 1pc/package
