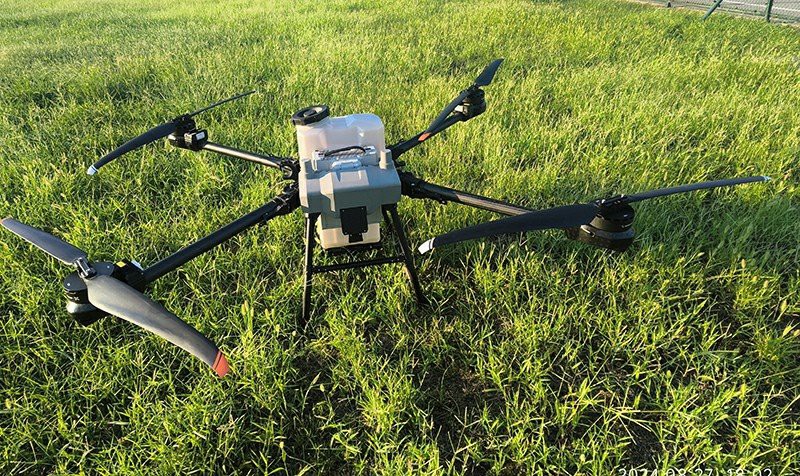

LSM Series agricultural UAV system solutions,With16KG,20KGtwokindsofload models,lightand portable,single operation iseasy to worry, No-wire integrated grouping flight control, easy to install, 360 omnidirectional radar,intelligent perception Easily cope with various plant protection challenges, and escort the harvest of crops.
One piece truss fuselage
The exquisite structure and sturdy texture show excellent resistance to drops
360 omnidirectional radar
Omnidirectional obstacle avoidance,
comprehensive perception,and overall
improvement of operation safety
Grouped modular design
Fast flight control mode,RTK module
receiver module separation design, plug
and play, flexible configuration
Intelligent control system
New operation interface, more powerful intelligent
interaction logic,help smart agriculture
5L water pump
High life /IP67 protection grade/Double protection(durable, stable)
01
5.5-inch highlight remote control
Qualcomm Android platform, 6-10KM wirelessdigital image transmission
02
Liquidometer
Intuitive, accurate, stable and reliable
03
X9plus motor
Strong power, energy efficient
04
13.8m/s high-speed air broadcast
The efficiency of seeding has beenigreatly improved
05
Water cooled centrifugal nozzle
Interlayer water-cooled centrifugal nozzle can effectively reduce the temperature of electrical andmechanical regulation, and increase the life by 70%. The particle size range can be as small as 30 microns, bringing a new spraying experience.
With four sprinkler heads
- Water cooled centrifugal nozzle
- Pressure nozzle (optional)
|
Product parameter |
||
|
|
||
|
volume |
16L |
20L |
|
Developed size |
2162×2334×639mm |
2162×2334×639mm |
|
Folding size |
1042×709×639mm |
1042×709×639mm |
|
wheelbase |
1878mm |
1878mm |
|
Aircraft dead weight |
17.4kg(without battery) |
17.5kg(without battery) |
|
Maximum take-off weight |
44.5kg |
48.6kg |
|
Idle hover time |
20min |
20min |
|
Full load hover time |
10min30s |
10min |
|
Spray flow |
4-8L/min |
4-8L/min |
|
Spraying system |
Centrifugal nozzle/pressure nozzle |
Centrifugal nozzle/pressure nozzle |
|
Job spray width |
7-16m |
7-16m |
|
Flight control system |
Integrated control |
Integrated control |
|
Radar installation |
Forward obstacle avoidance/Rear obstacle avoidance/imitation radar/omnidirectional radar |
|
|
Flight radius |
≤5000m |
≤5000m |
|
Flight speed |
1-12m/s |
1-12m/s |
|
hover |
It can hover in any direction |
It can hover in any direction |
|
Safe takeoff and landing speed |
≤Lv.6 |
≤Lv.6 |
|
Battery capacity |
14s2000mah |
14s2000mah |
|
Battery weight |
7.9kg |
7.9kg |
Basic Edition
| Rack | x1 | Flowmeter | X1 |
| Engine arm | X4 | Sprayer | x2 |
| Flight control | X1 | Camera | X1 |
| GPS | X1 | Motor blade | X4 |
| Medicine chest | X1 | Pneumatic bag | X1 |
| Water pump | x1 | Liquidometer | X1 |
Standard Edition
| Rack | ×1 | GPS | ×1 |
| Engine Arm | ×4 | Obstacle Avoidance Radar | ×2 |
| Flight Controller | ×1 | Imitation Radar | ×1 |
| Camera | ×1 | Medicine Chest | ×1 |
| Water Pump | ×1 | Flowmeter | ×1 |
| Sprayer | ×2 | RTK | ×2 |
| Motor Blade | ×4 | Pneumatic Bag | ×1 |
| Liquidometer | ×1 |
High-end Version
| Rack | ×1 | GPS | ×1 |
| Engine Arm | ×4 | Obstacle Avoidance Radar | ×2 |
| Flight Controller | ×1 | Imitation Radar | ×1 |
| Camera | ×1 | 360 Radar | ×1 |
| Medicine Chest | ×1 | Water Pump | ×1 |
| Flow Meter | ×1 | Sprayer | ×2 |
| RTK | ×2 | Motor Blade | ×4 |
| Pneumatic Bag | ×1 | Liquidometer | ×1 |
