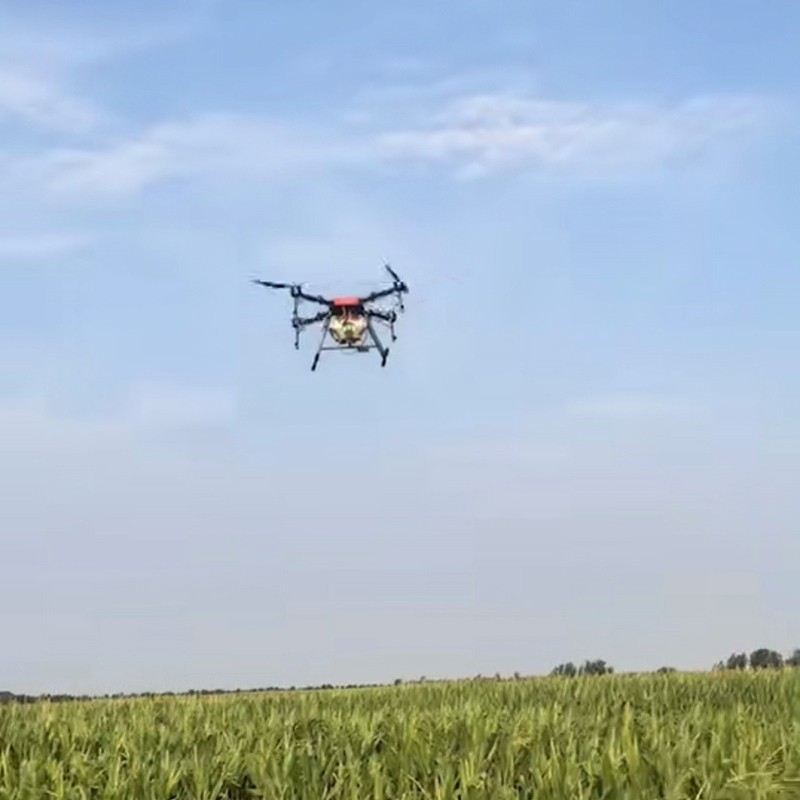

Agricultural thermal imaging drones refer to agricultural drones equipped with infrared thermal imaging sensors. By capturing the infrared radiation emitted by crops, soil, and other objects, they convert invisible temperature differences into color thermal maps, enabling non-contact, rapid, and precise field health diagnostics. These drones can detect stress symptoms before they become visible to the naked eye, making them a core component of precision agriculture.
Core Meaning and Technical Principles
Working Principle:
The thermal infrared camera (common wavelength range 8–14μm) captures the surface temperature distribution, and the temperature differences form a visual thermal map, revealing physiological changes in crops.
Core Value:
It is 5–10 times more efficient than manual inspection, can cover large areas of farmland, and is unaffected by environmental interference such as lighting or smoke.
Comparative advantage:
Unlike visible light (RGB) and multispectral imaging, it focuses more on moisture and stress, enabling early detection of hidden issues such as pests, diseases, water deficiency, and uneven irrigation.

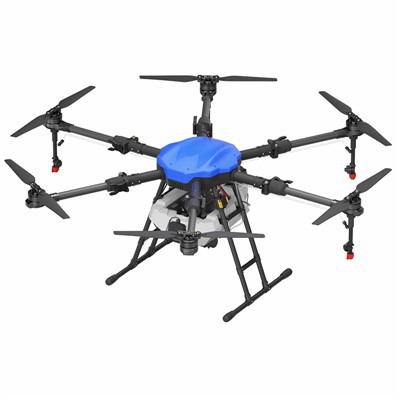

LS416 AGICULTURE DRONER
Integrated fiber plastic frame, internal multi link framework, strong and durable. PCB is installed inside the frame, and the installation and wiring is simple without leakage.
LS416 IP65 Dustproof and waterproof
The upper and lower covers of the whole machine body are sealed to effectively take out the dust-proof and waterproof effect.
Injection folding parts
The new folding part adopts the integrated injection molding process, and the machine arm has a plastic wrapped structure, which is not easy to loosen and more stable.
New medicine box design
The new medicine box design is compatible with a variety of radar installations. Installation of single and double water pumps. Reasonable layout.
Multiplecolors
Customize a variety of mainstream colors to meet customers' selection needs.
Encircling folding
Classic surround folding design, simple and practical, reducing transportation space.

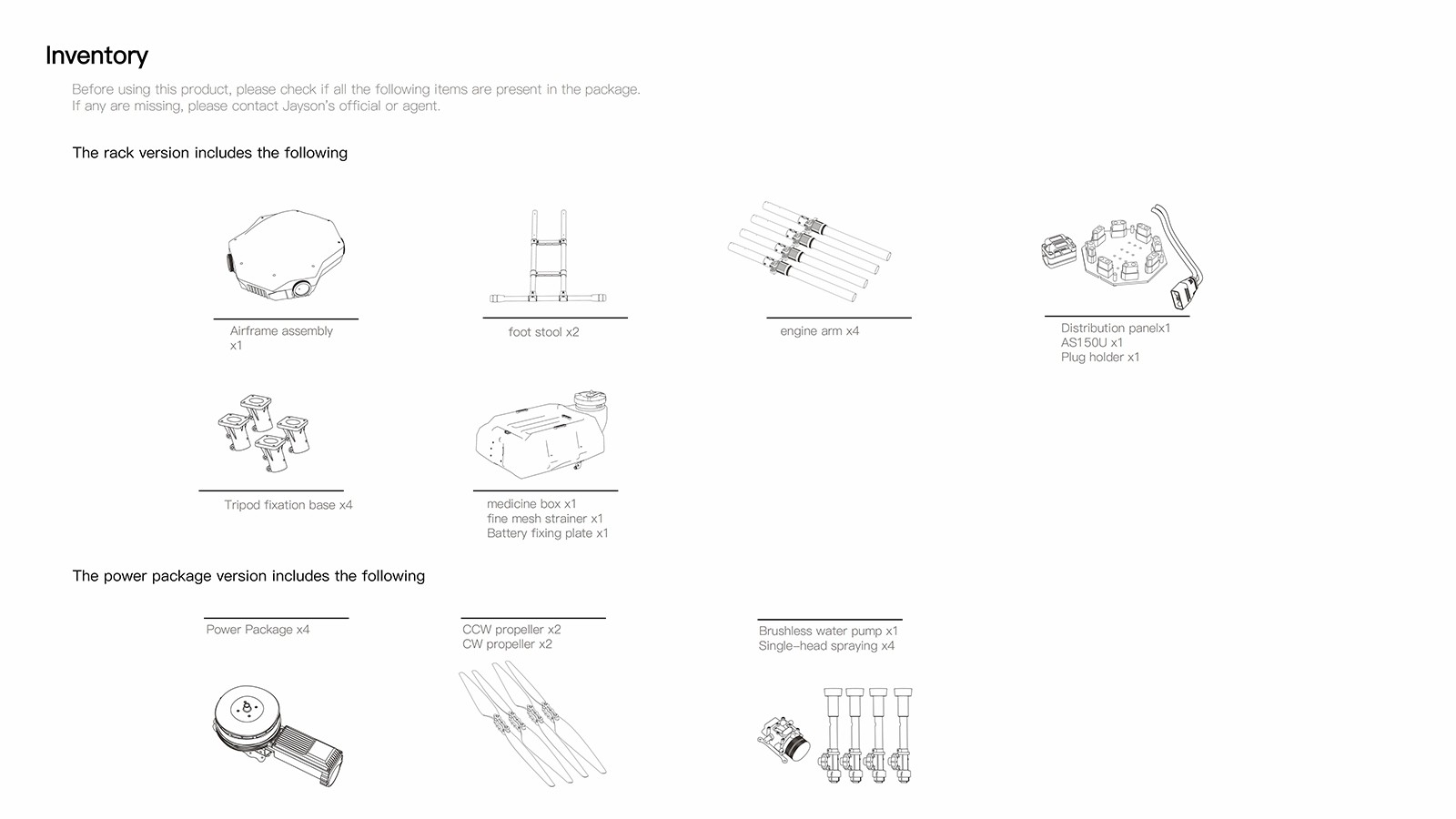

Product packaging
Foam packing box, which can be used to place the rack and propeller blades of the power system.
LSEV Quadcopter Parameter ConfigurationTable
Appearance color | Grey |
Length | 1100mm |
Width | 1100mm |
Height | 600mm |
Wheelbase | 1400mm |
Pipe diameter | 37×40mm |
Unfold size | 1000 × 1000 × 600mm |
Folding size | 620 × 620 × 600mm |
Material | Carbon fiber / Nylon fiber / Aluminum alloy |
Weight | 13kg (airframe) / 6.5kg (tank) |
Volume | 16L / 8L (pressure nozzle) |
ESC system | K++ / V7-AG |
Dynamic system | T107×9, 34 inches |
Radar installation | Pre-avoidance / Post-avoidance / Ground-fitting type |
Lithium battery | 14S 18000mAh |
Overall payload | 36kg |
